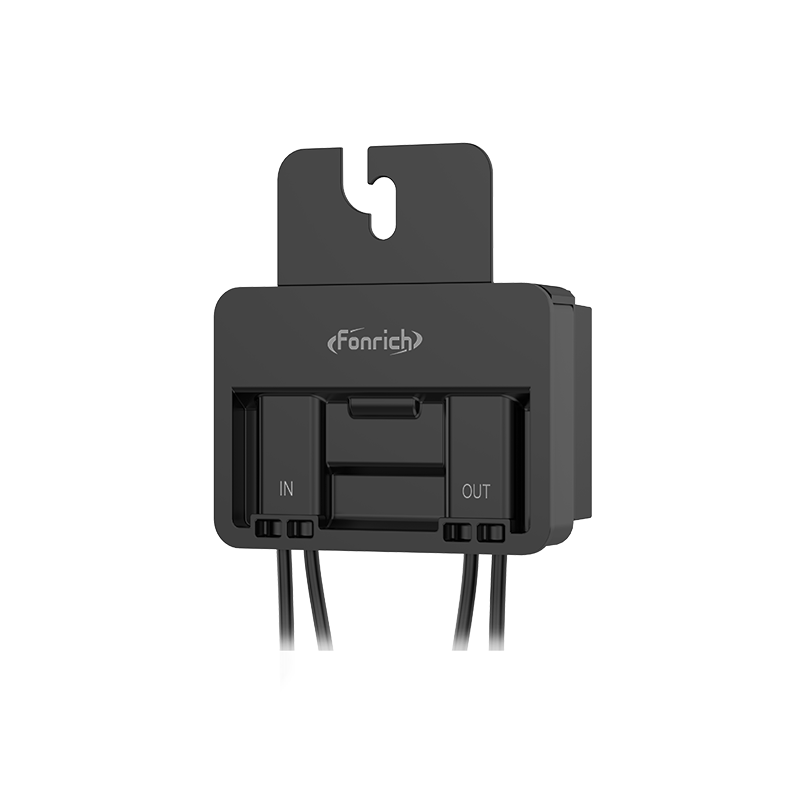

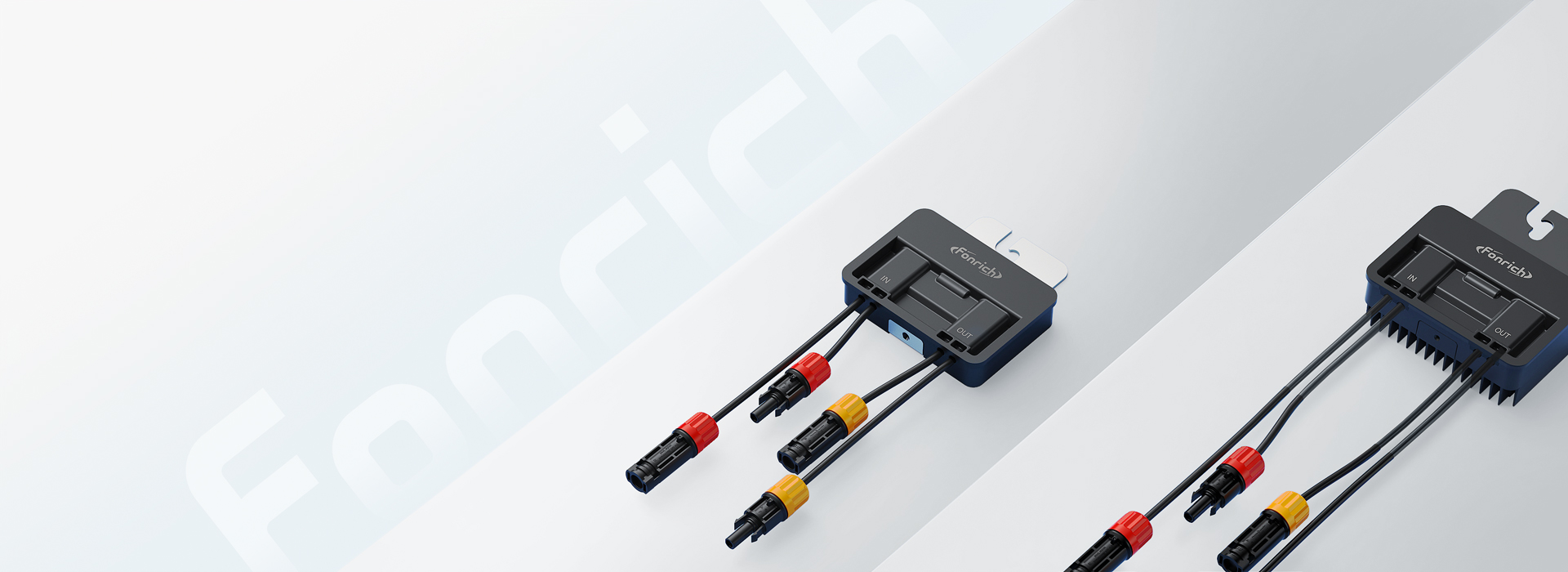

Optimizador de potencia inteligente - Thermal Plus - 1400W

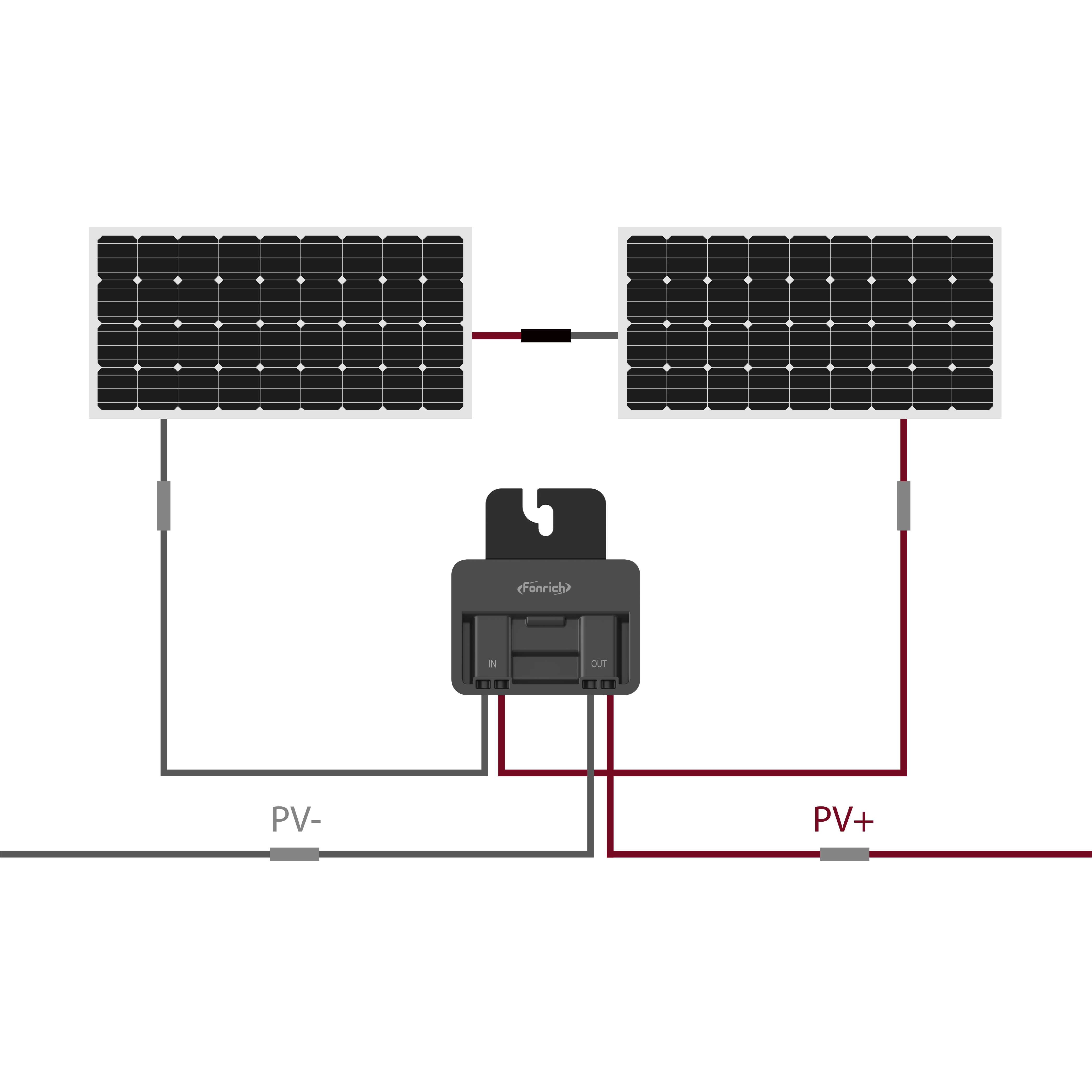

Fonrich solar power optimizer, also known as a PV optimizer or solar panel optimizer, maximizes energy output by minimizing losses from shading and mismatch. Designed for one optimizer per panel, it supports easy PV install and is ideal for both residential and commercial solar optimization. This enhanced version is equipped with an advanced heat sink for superior thermal management, ensuring higher efficiency and longer lifespan in high-temperature environments. Available in two models: one-to-one (single panel) and one-to-two (dual panel) configurations, offering greater flexibility for various system layouts.
Features & Advantages

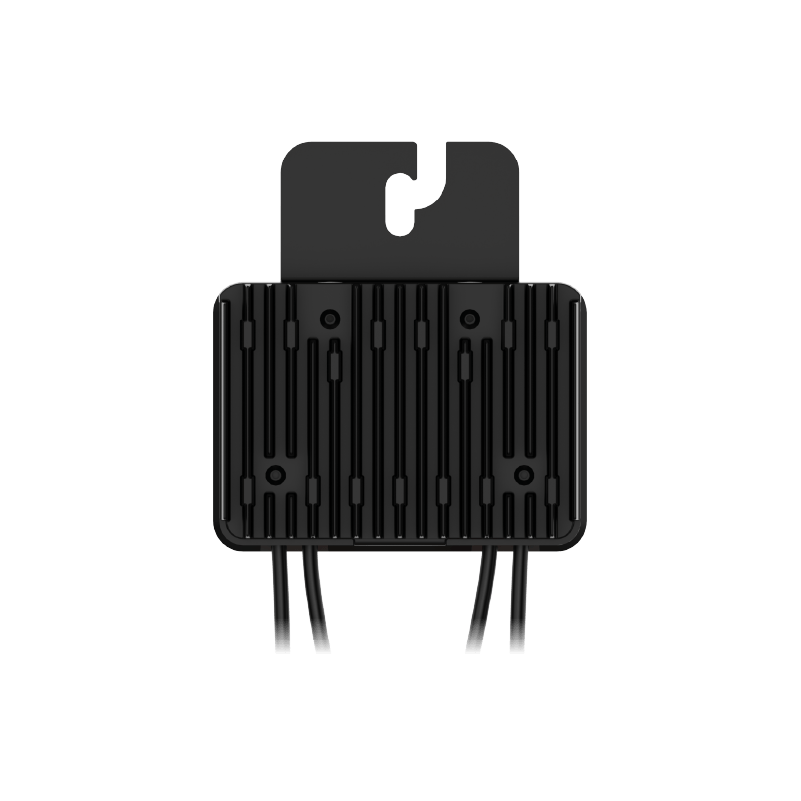

Built with rapid shutdown and remote monitoring via SafeSolar App, this solar DC optimizer enhances system safety and management. Its long-distance communication and flexible design make it a preferred choice among solar optimizers and optimisers for solar panels globally. Fully compliant with NEC 2023, NEC 2020, NEC2017 and UL 3741, it meets the highest industry safety and performance standards. The enhanced cooling model features an upgraded heat sink for improved heat dissipation, making it especially suitable for hot climates or high-load installations.
Ventajas del producto
Mejora de la eficiencia de generación de energía

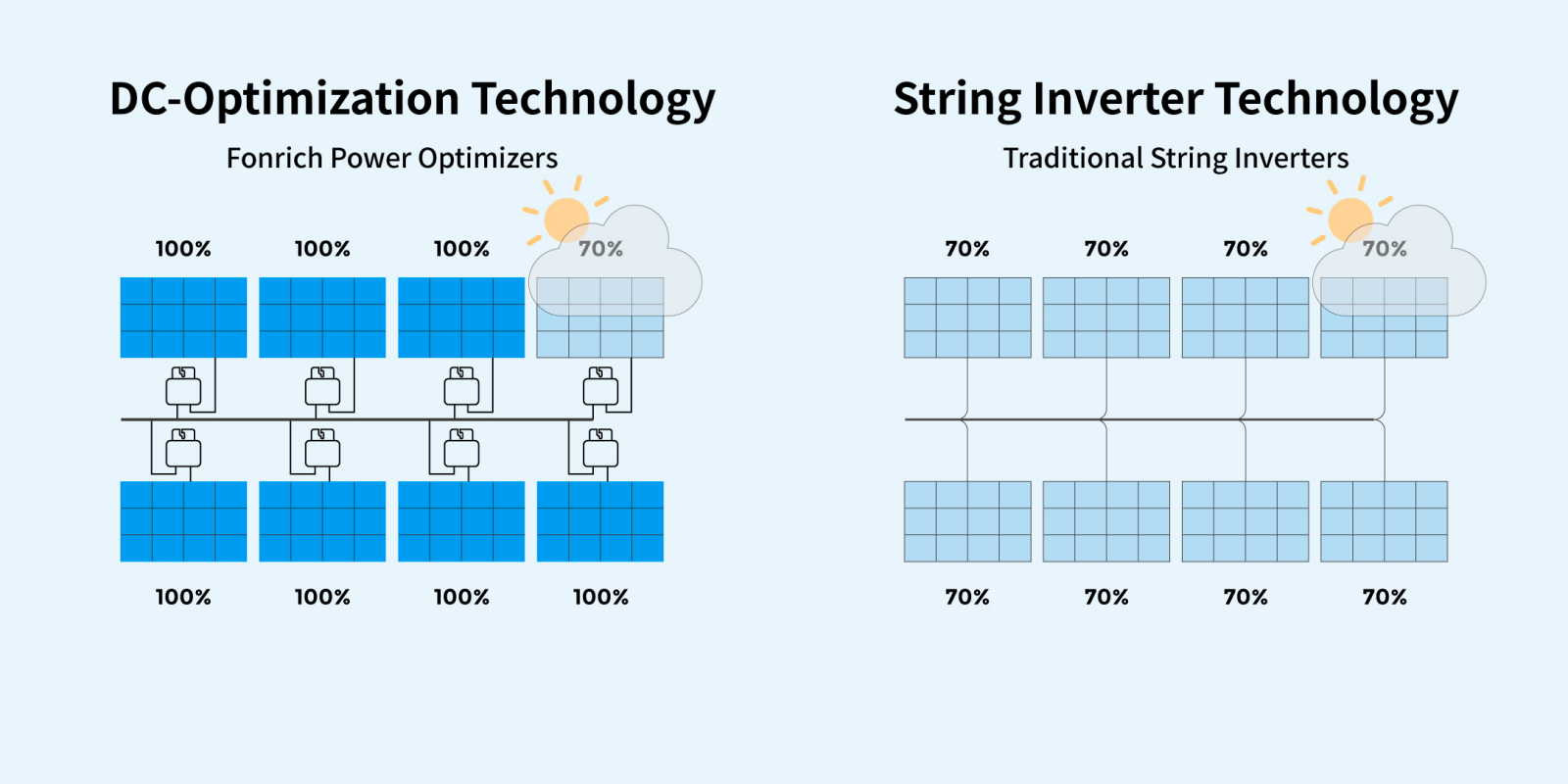

Solucionar las pérdidas de generación de energía causadas por sombreado, orientación diferente y desajuste

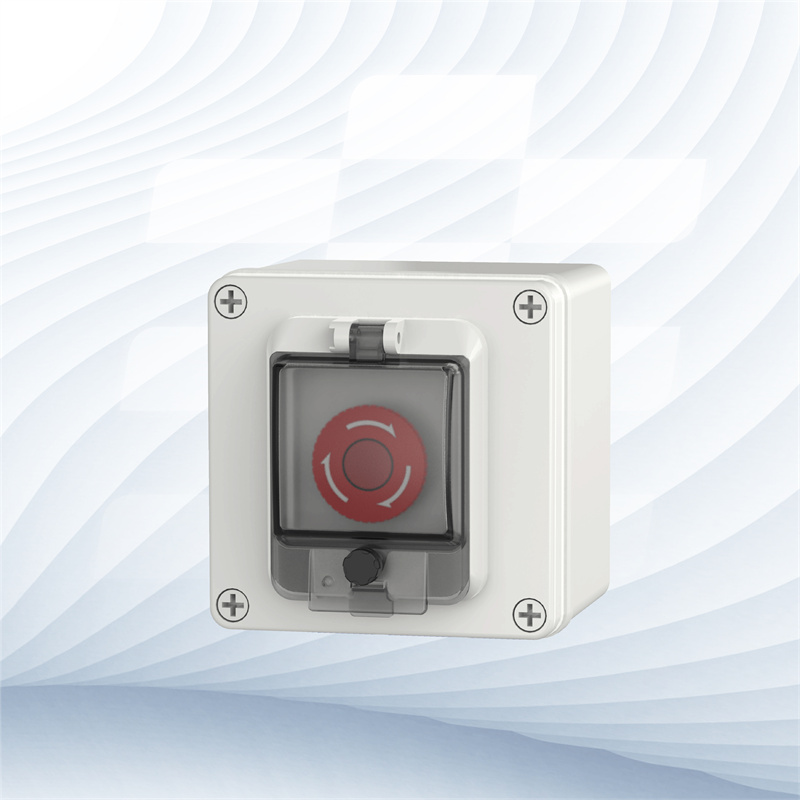

Apagar rápido automático / manual
Protección automática o apagado manual, para garantizar el mantenimiento y la seguridad contra incendios
Soporte para el monitoreo remoto de datos
Las instantáneas incluyen voltaje, corriente, potencia, generación de energía, punto de trabajo IV, temperatura, etc.

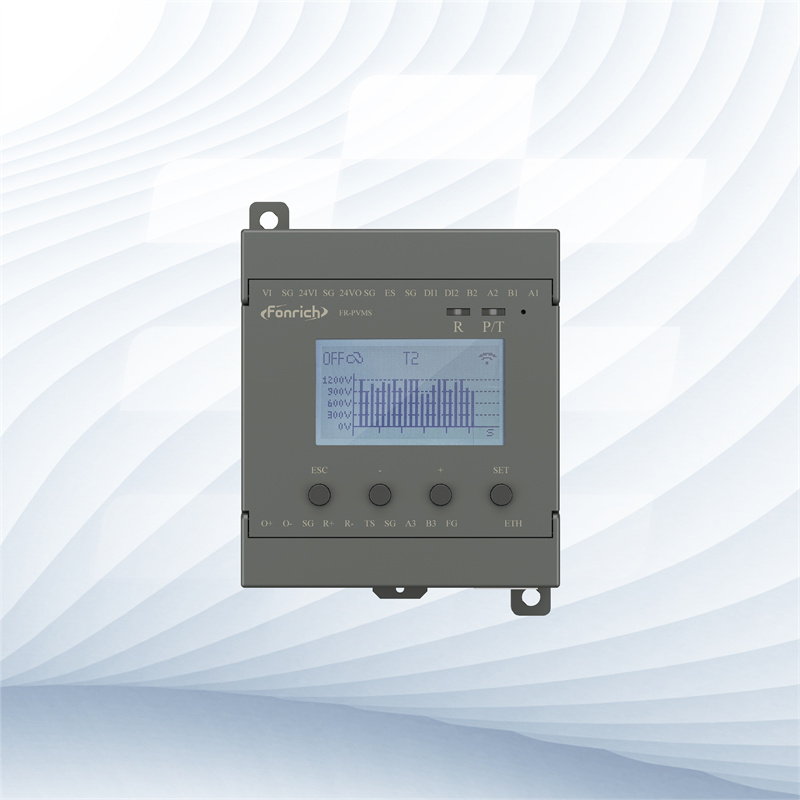

Comunicación PLC de 1600m
Soporta comunicación a distancia súper larga
Parámetro Técnico
Modelo
FR-PVMB-C140E/C140J
Canales / módulos PV compatibles
1/2
Potencia máxima de entrada
1400W
Rango de voltaje de funcionamiento
17~105Vdc
Sistema Max Voc
1500Vdc
Método de instalación
Photovoltaic rail
Tamaño (sin cables y conectores)
120x132x45mm
Peso (incluyendo cables)
1000g
Normas de seguridad
NEC 2017, 2020 & 2023 (690.12); IEC 62109-1; EN 62109-1; UL 3741
